The C414 XLS multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLS maintains the sonic character of the legendary C414 B-ULS, the most popular AKG C414 version since 1971. Engineered for highest linearity and neutral sound, it has been the most versatile large-diaphragm microphone for decades.
Features:
- 9 selectable polar patterns - for the perfect setting for every application
- Three attenuation levels (-6/-12/-18db) - for close up recording or high output source up to 158db SPL
- Three switchable different bass cut filters - to reduce wind noise, stage vibration or proximity effect
- Overload warning with audio peak hold LED - to detect shortest audio peaks
- Engineered for highest linearity and neutral sound - for beautifully detailed recording of vocals and any acoustic instrument

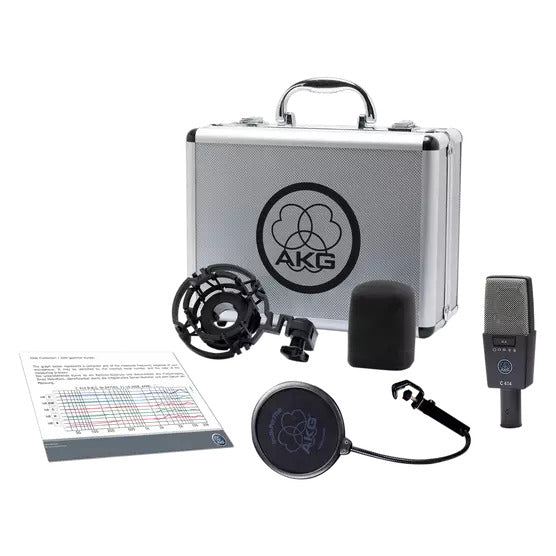

In The Box:
- 1 x C414 XLS Microphone
- 1 x H85 Universal Shock Mount
- 1 x PF80 Pop Filter
- 1 x W414 Windscreen C414
- 1 x Metal Carrying Case
General Specifications
- Polar Patterns: Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
- Audio frequency bandwidth: 20 - 20000 Hz
- Equivalent noise level: 6 dB-A
- Sensitivity: 23 mV/Pa
- Signal to Noise: 88 dB-A
- Pre-attenuation Pad: -6; -12; -18 dB
- Bass cut filter: 160; 80; 40 Hz
- Electrical impedance: 200 Ohms
- Recommended load impedance: 2200 Ohms
Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
Design
- Finish: Dark grey/silver
Application
- Pro Studio: Yes
Instrument
- Vocals: Yes
- Piano / Strings: Yes
- Horns / Woodwinds: Yes
Powering Interface
- Voltage: 44 to 52 V
- Current: 4.5 mA
