The C414 XLII multi-pattern condenser microphone offers a choice of nine polar patterns for the perfect sonic capture for every application. A peak hold LED displays even the shortest overload peaks. For live sound applications and permanent installations, all controls can easily be disabled for trouble-free use.
The C414 XLII version differs from the C414 XLS version in one major respect – the capsule. The C414 XLII's slight presence boost and impressive spatial reproduction are both similar to the legendary AKG C12 microphone from 1953.
Features:
- 9 selectable polar patterns - for the perfect setting for every application
- Three attenuation levels (-6/-12/-18db) - for close up recording or high output source up to 158db SPL
- Three switchable different bass cut filters - to reduce wind noise, stage vibration or proximity effect
- Overload warning with audio peak hold LED - to detect shortest audio peaks
- Sonic character of the famous AKG C12 - delivers astounding sound quality for lead vocals and solo instruments

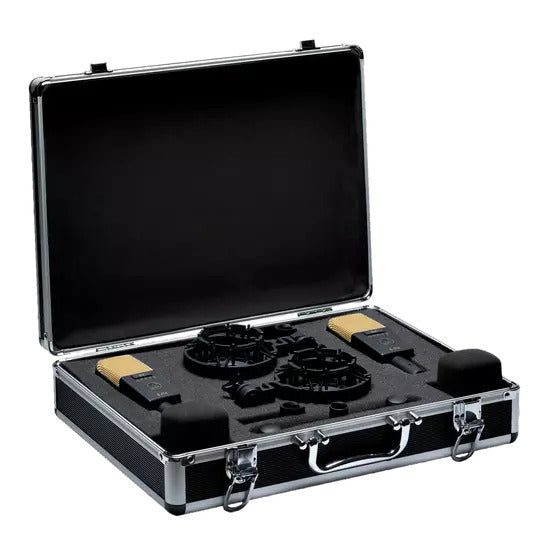

In The Box:
- 2 x C414 XLII Microphone
- 2 x H85 Universal Shock Mount
- 2 x SA60 Stand Adapters
- 2 x W414 Windscreens
- 1 x H50 Stereo Bar
- 1 x Aluminium Carrying Case
- 1 x Measurement Documents
General Specifications
- Polar Patterns: Cardioid, Figure of eight, Hypercardioid, Omnidirectional, and Wide Cardioid
- Audio frequency bandwidth: 20 - 20000 Hz
- Equivalent noise level: 6 dB-A
- Sensitivity: 23 mV/Pa
- Signal to Noise: 88 dB-A
- Pre-attenuation Pad: -6; -12; -18 dB
- Bass cut filter: 160; 80; 40 Hz
- Electrical impedance: 200 Ohms
- Recommended load impedance: 2200 Ohms
Audio Output
- Type: Balanced XLR
- Gender: Male
- Contacts: 3-pin
Powering Interface
- Voltage: 44 to 52 V
- Current: 4.5 mA
Application
- Pro Studio: Yes
