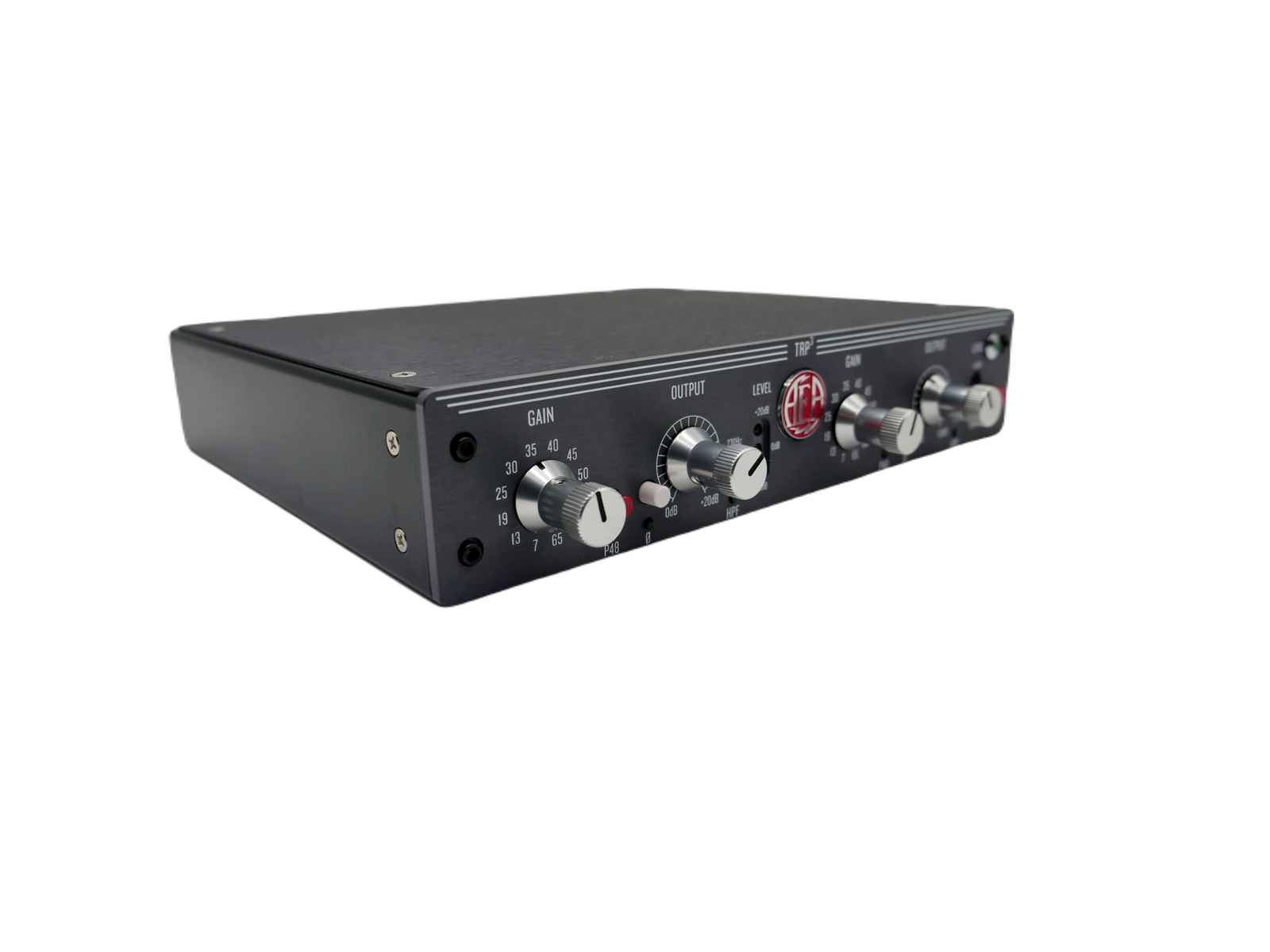

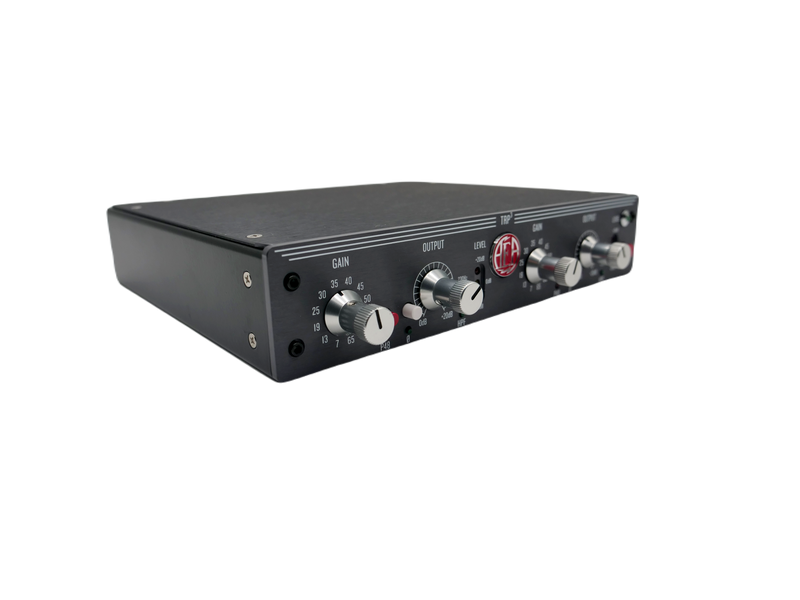

The AEA TRP3 mic preamp utilises our newest 3rd generation circuit design. This versatile, half-rack preamp provides two channels of high-output, high-impedance, and low-noise gain with a rich and natural sound that brings out the full potential of your microphones.
Overview
- Two-channel, high-gain, half-rack mic pre
- Ultra-high 68KΩ input impedance (phantom power off)
- 7 to 85 dB of gain
- 48V phantom and polarity switch
- HPF switchable -3dB at 115 Hz or 230 Hz
- External PSU
- Optional rack ears (for one unit) or rack shelf (two units) for mounting purposes
Enhance Your Ribbons
The AEA TRP3 Ribbon Preamp provides two channels of high-output, high-impedance, and low-noise gain with a rich and natural sound that brings out the full potential of your microphones. Specifically designed for ribbon microphones, the TRP3 excels at drawing out the warmth and lush sound that ribbons are uniquely known for. Our 3rd generation circuitry is the cleanest and most musical design we've done yet.
Small, But Mighty
The TRP3 is a half-rack powerhouse that provides unparalleled high gain with low-noise. With 85db of output, the TRP3 gives you enough juice to record soft sources without ever having to worry about noise. Passive ribbons and other low-level sources require preamps that supply a high level of output. Without enough clean gain, low-level mic signals can sound too soft or too noisy. This noise can be especially evident when recording quieter instruments (acoustic guitars, strings), recording at a distance or when using long cable runs. With the TRP3, you will never consider a source too quiet to record with a ribbon mic ever again.
Professional Features in a Compact Package
Designed for ribbons but well-equipped for condenser and dynamic microphones alike, the dual-channel TRP3 delivers all the gain power of our RPQ3 in a more compact, half-rack package.
The TRP3 offers all the classic features of the TRP and TRP2 with the added benefit of an up-to-date circuit design, upgraded components, more straightforward control markings and a dual-option high-pass filter for repeatable proximity effect taming.
The TRP3 faithfully reproduces even the smallest details of microphones, voices, and other sound sources. Great for stereo pair recording, easily recallable settings, and capturing true-to-source sound, the TRP3 is a simple yet versatile tool.
A Universal Power Supply
The TRP3 includes an external switching power supply with a grounded AC plug that keeps hum fields away from the high-gain electronics. This power supply allows the TRP3 to be used in any country without any modifications made to the unit.
Racking THE TRP3

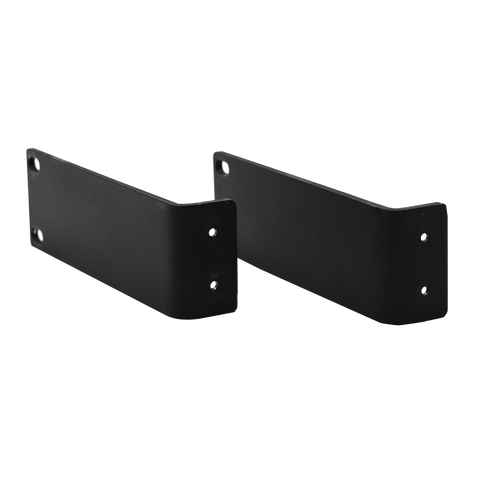

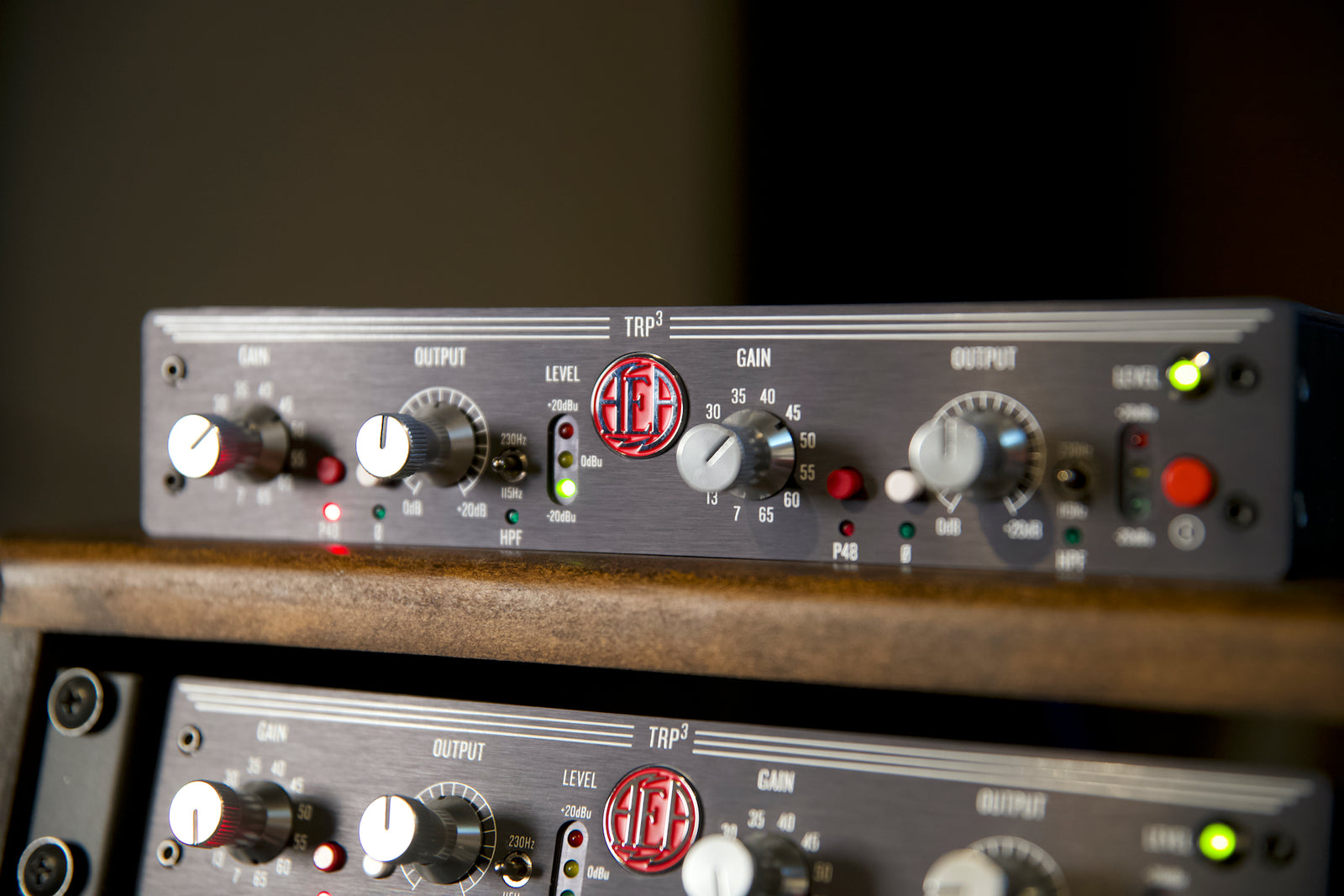

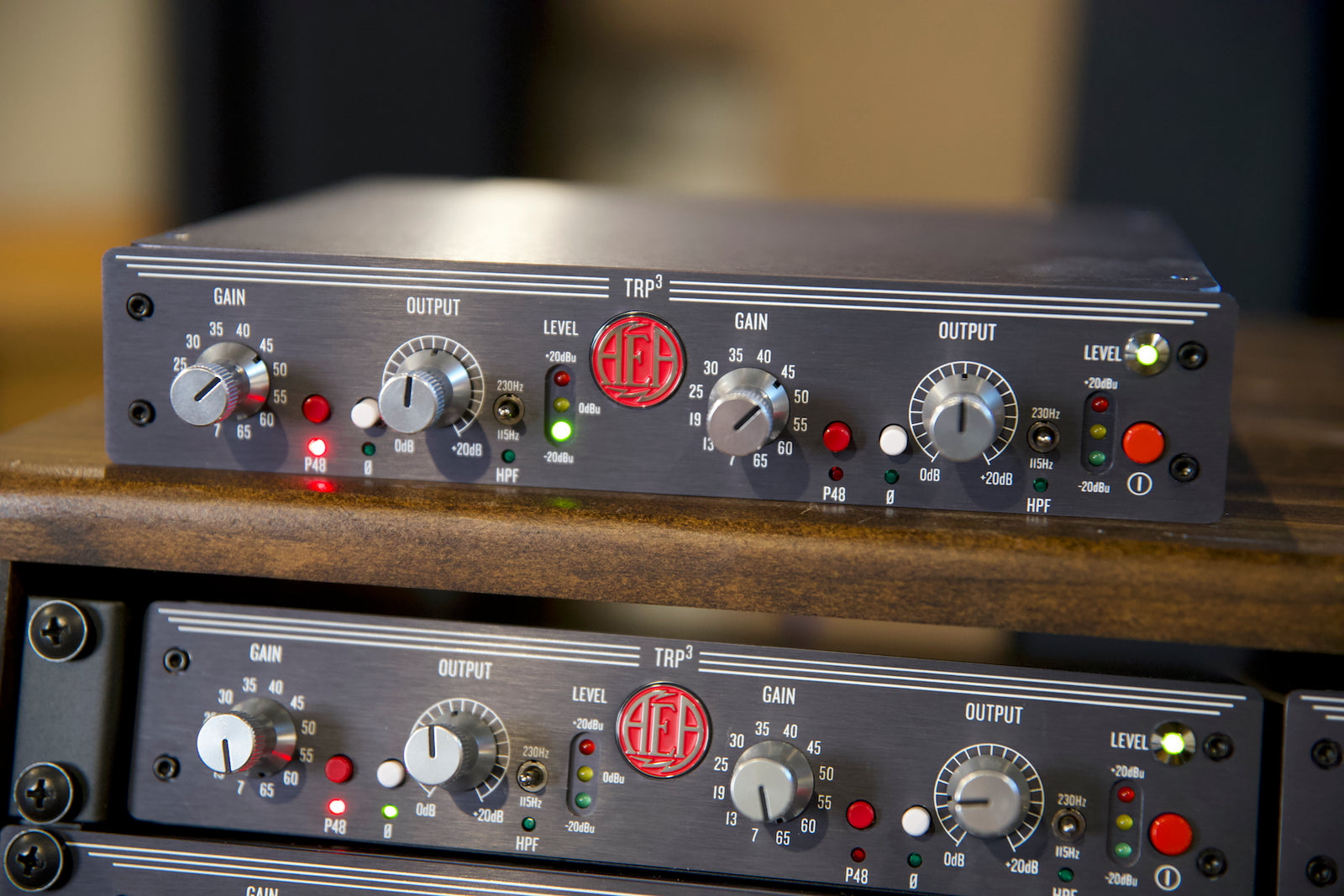

The TRP3 is housed in a portable and lightweight half-rack aluminium chassis that allows you to easily take it to remote gigs, other studios, and on the road. AEA manufactures optional racking gear for convenient use in rackmount furniture. A single TRP3 can be easily racked with TRP3 Rack Ears. Rack two TRP3s side by side with a TRP3 Rack Shelf. These assemblies can be securely installed in any standard rack.
Spec Overview
- Two-channel, high-gain, half-rack mic preamp
- Ultra-high 68KΩ input impedance (phantom power off)
- 7 to 85 dB of gain
- 48V phantom and polarity switch
- HPF switchable -3dB at 115 Hz or 230 Hz
- External PSU
- Optional rack ears (for one unit) or rack shelf (two units) for mounting purposes
TRP3 SPECIFICATIONS
- Max Gain at 1 kHz: 85 dB
- EIN (Max gain, 22 Hz to 22 KHz, unweighted): 130 dBu (typical), 40 Ω source, 128 dBu (typical), 150 Ω source
- Frequency Response: 30 dB gain: (-0.5 dB from 200 kHz), 85 dB gain: (-3 dB 9Hz to >200 kHz)
- THD+N: 0.0015% (1 kHz, 22 Hz-22 kHz @30 dB Gain +4 dBu output)
- XLR Output Max Level: +27 dBu into 600 Ω load
- Input Impedance: 11.3 kΩ (with Phantom), 68 kΩ (no Phantom)
- Output Impedance: 50 Ω
- Max Input Signal Level: +20 dBu (minimum gain)
- Stepped Gain Control: 12-position switch from +7 dB to +65 dB
- Output Trim: Continuously variable from 0 dB to +20 dB
- EQ Circuitry: Switchable, passive first-order high-pass filter, Selectable frequencies (-3 dB) at either 115 Hz or 230 Hz
- Input and Output XLR Polarity: Pin 2 hot
- LED Signal Level Indicators: Green LED ≅ -20 dBu; Yellow LED = 0 dBu; Red LED ≅ +20 dBu (clipping +27 dBu)
