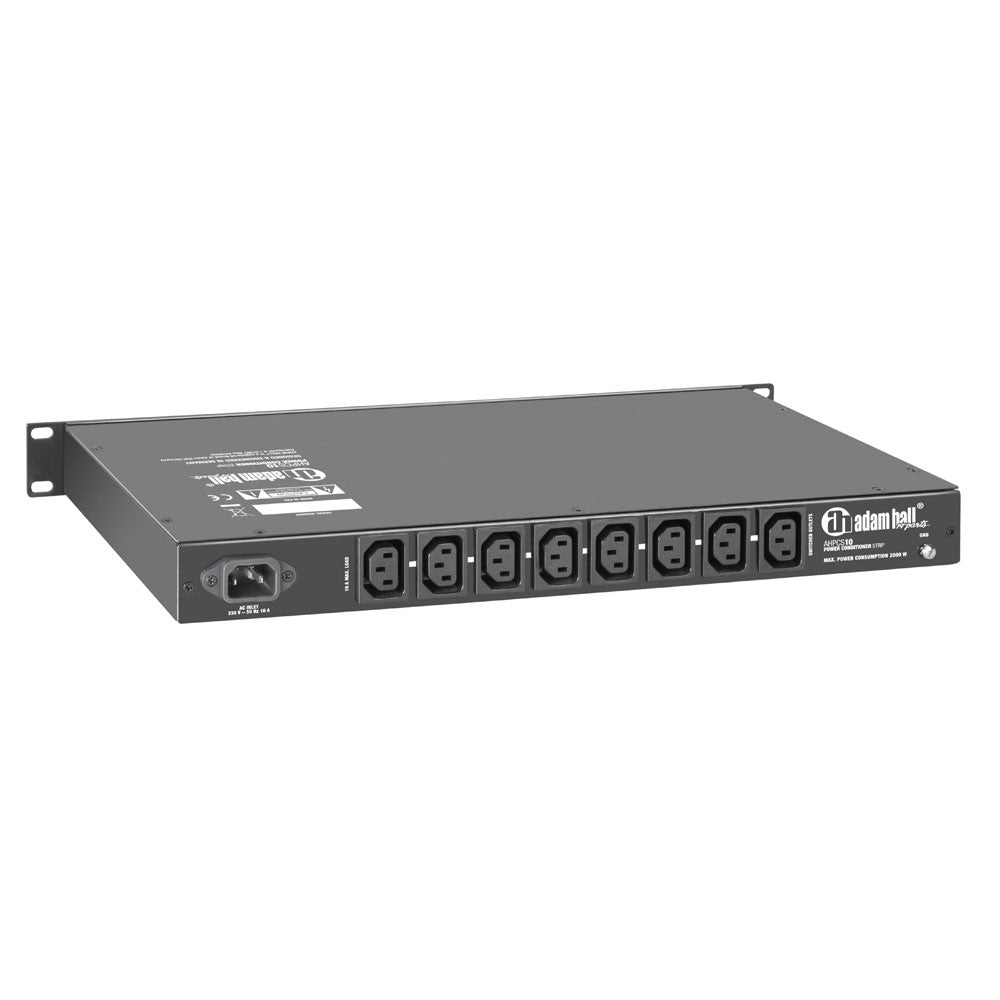

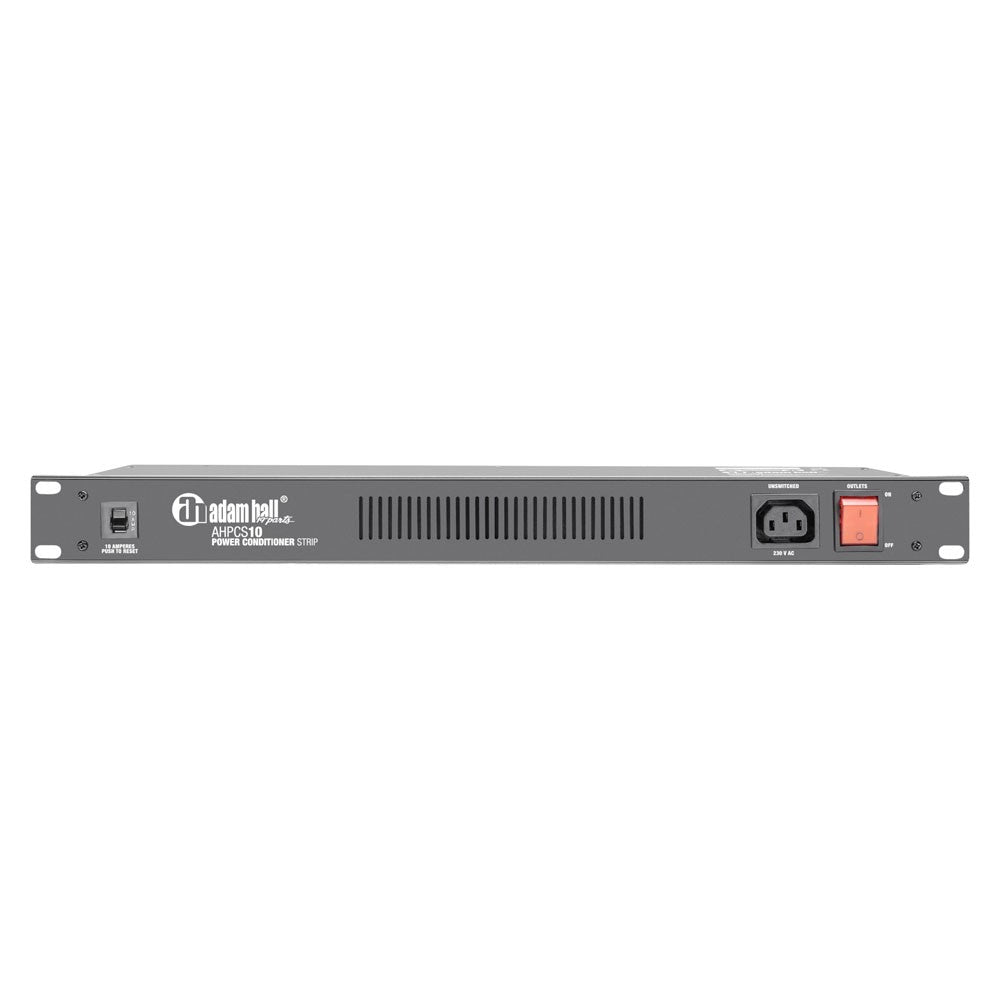

In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.

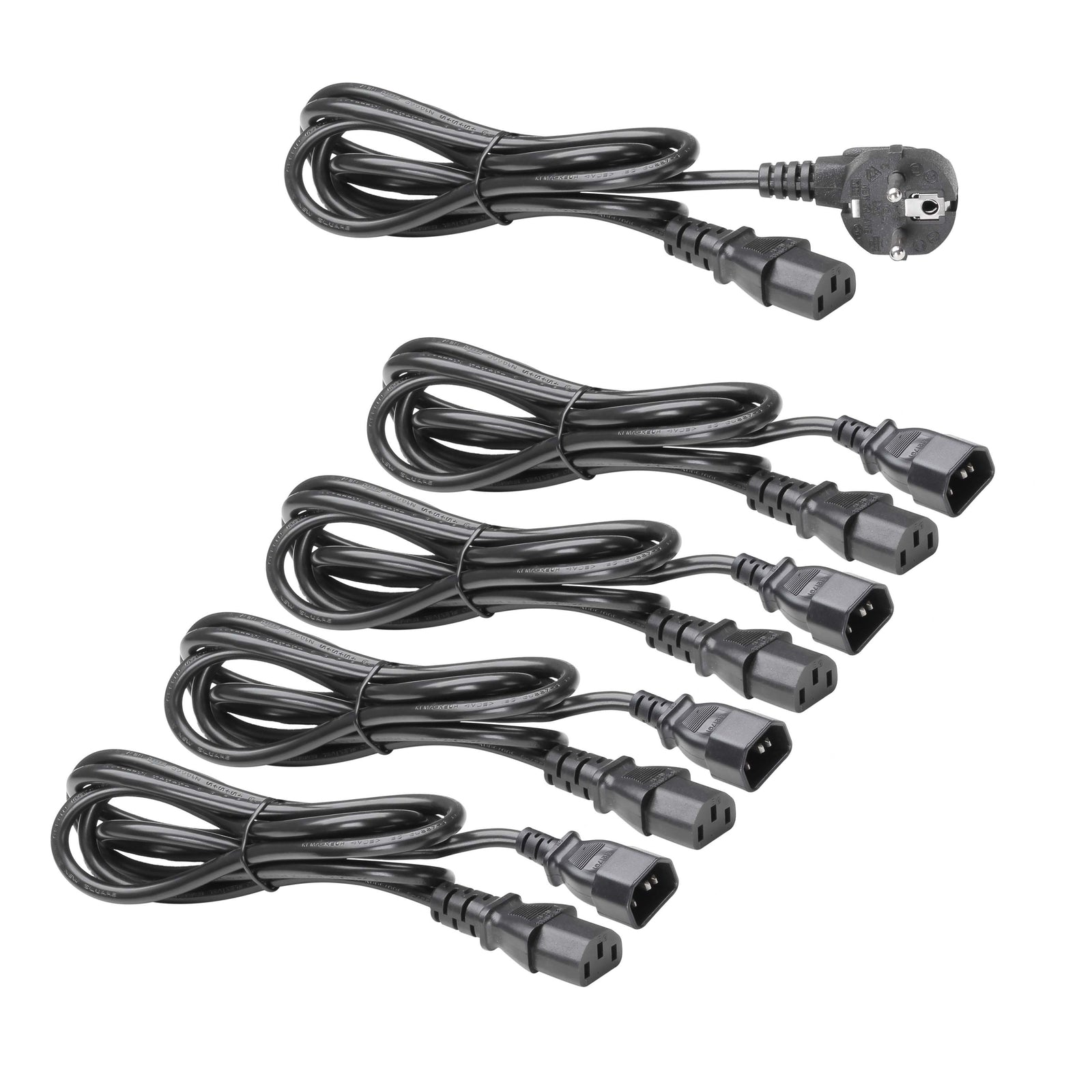

All AH power conditioners are supplied with four IEC connection cables.
- Reliable protection against over-voltage and impulse voltage
- Effective high frequency filter against interference

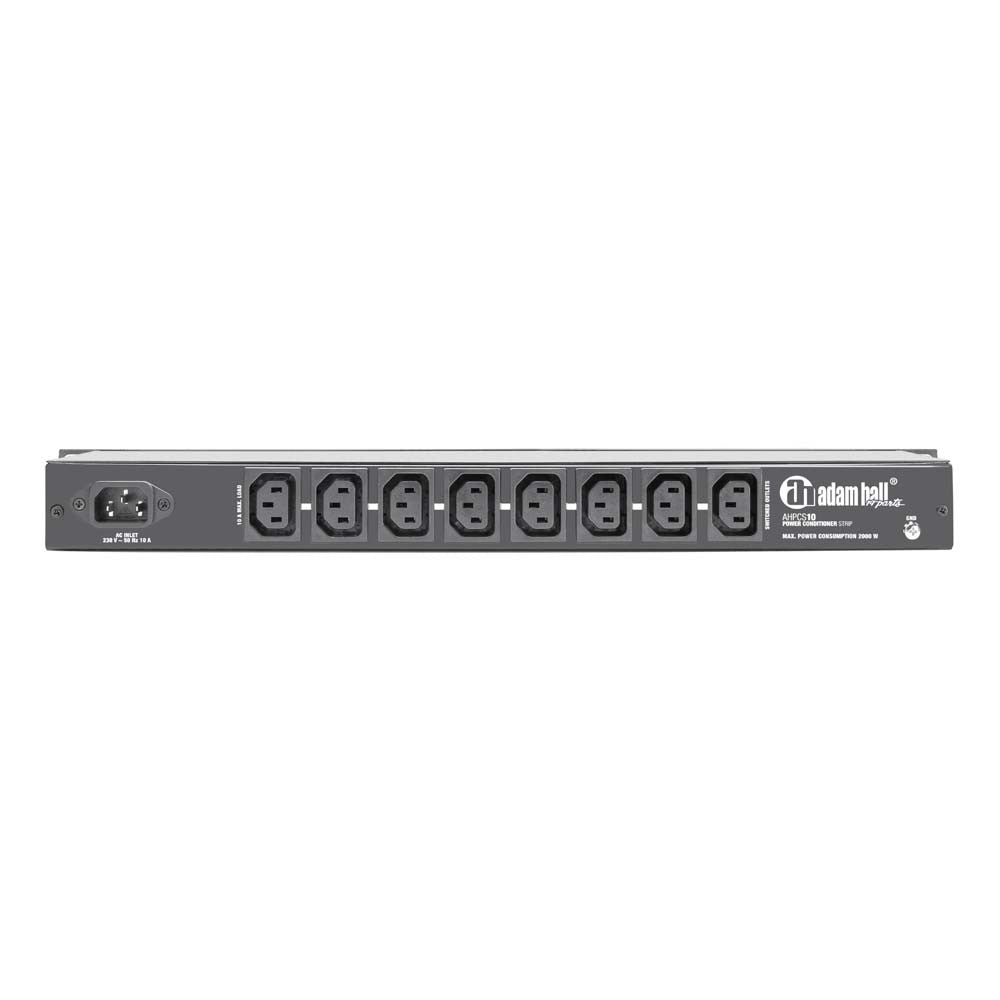

- Central power supply with 8 switchable IEC sockets

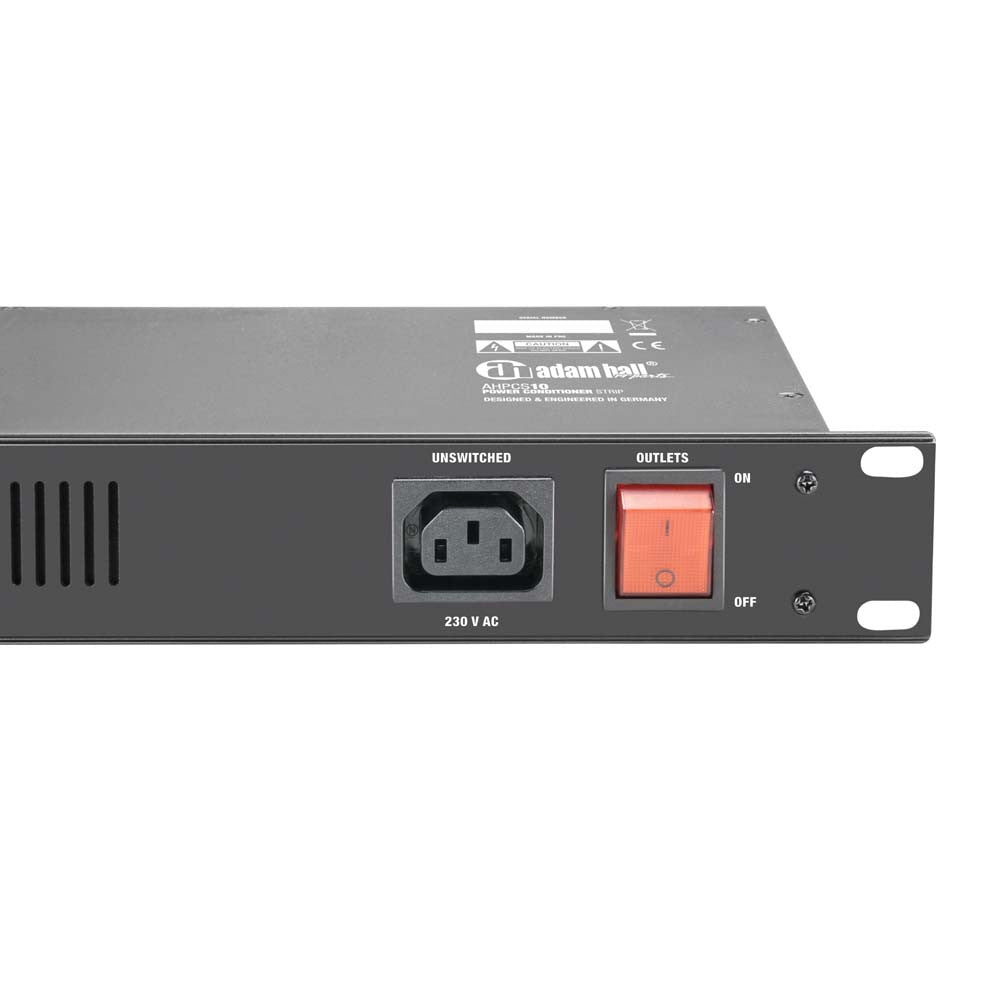

- Unswitched convenience socket on the front

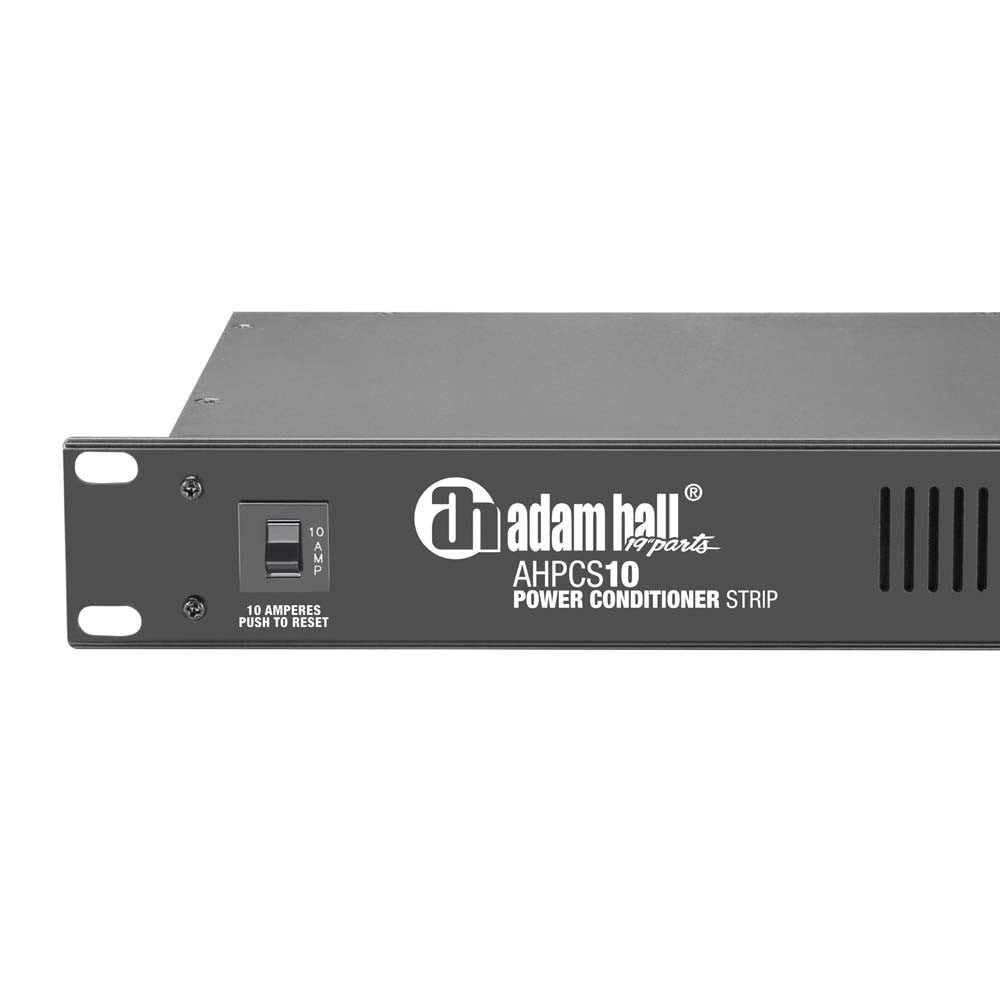

- Resettable circuit breaker on the front panel
Specifications
Product type: 19" rack mains socket strips
Type: 19" / 1 U
Number of outlets (IEC C14): 9
Input voltage: 230 V
Nominal Impedance: max 10 A
Protection Against Impulse Voltage: outer conductor to neutral
Response Time: 1 ns
Max. Surge Current: 6000A (8x20 µs pulse)
Max. Surge Energy: 70 joules per contact
Noise Cancelling: <20 dB, 1.5 MHz-200 MHz

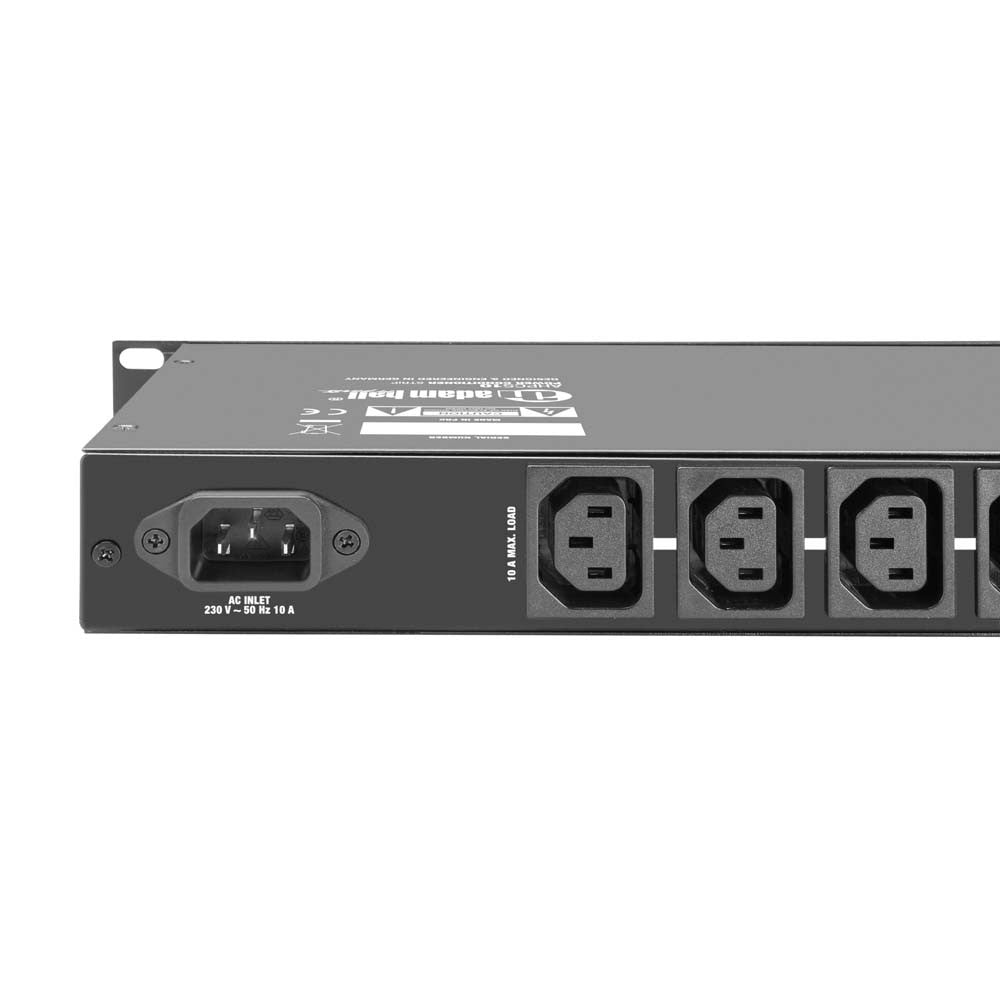

Mains connector: IEC mains cord
Fuse: 10 A
Width: 482 mm
Height: 44.5 mm
Depth: 190 mm
Weight: 2,27 kg
Features: incl. 4 power cables 1.8 m
