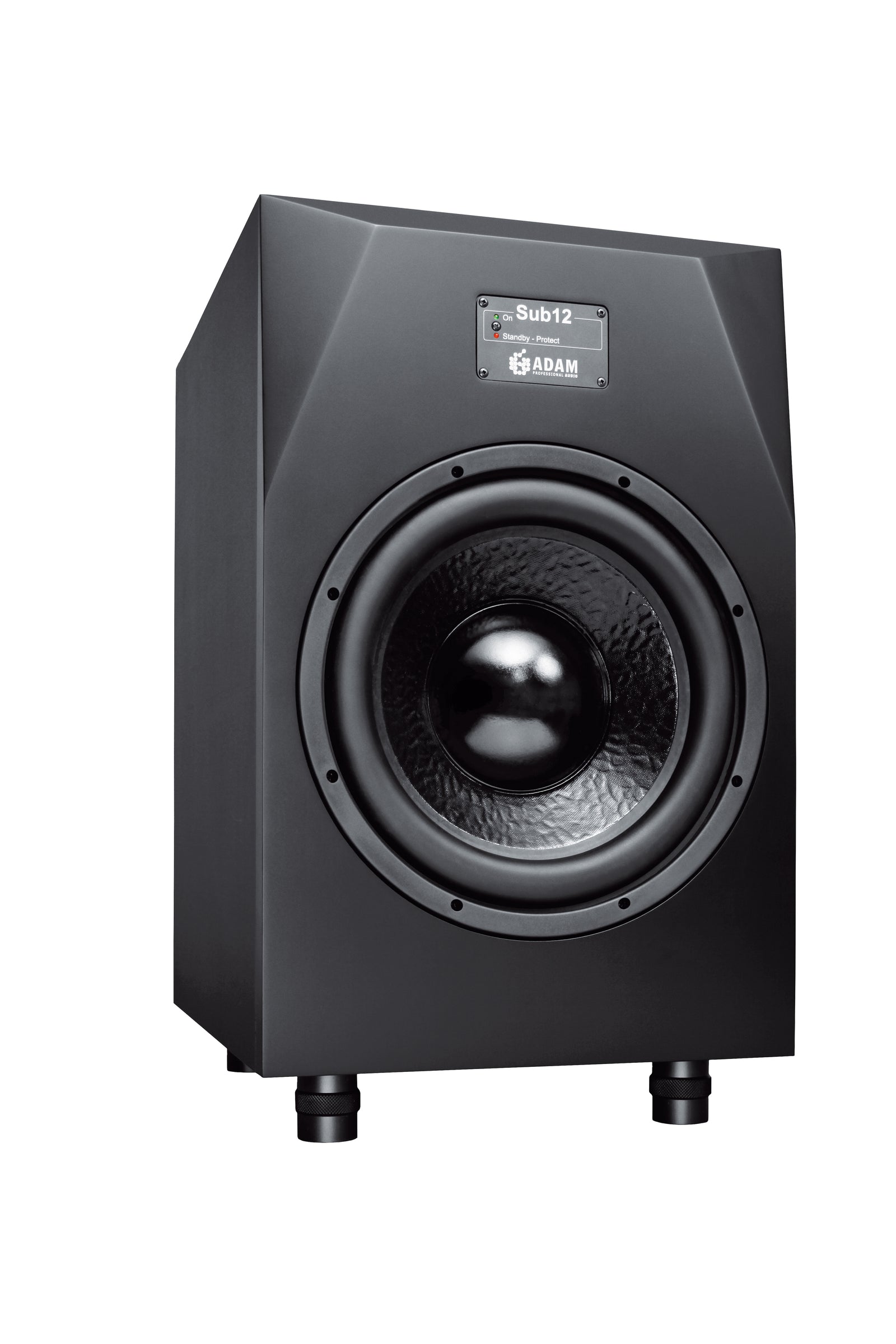

The Sub12 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 22 Hz.
A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimised for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.
The Sub12 subwoofer provides a precise combination of low cutoff frequency (-3dB at 22Hz) and an undistorted high sound pressure level (115dB SPL at 1m).
- 12“ Subwoofer (paper)
- Amp. Power RMS / Music: 200 W / 300 W
- Frequency Response: 22 Hz - 150 Hz
- Max. peak SPL at 1 m: ≥115 db
FEATURES & BENEFITS
|
PRODUCT FEATURE |
BENEFIT TO YOU |
|
Linear bass reproduction down to 22 Hz |
Ideal addition to nearfield and midfield monitors |
|
Maximum Peak sound pressure in 1 m ≥ 115dB |
Powerful, compression-free sound reproduction even at very high sound levels |
|
High efficiency PWM amplifier |
Low-distortion amplification at both low and high volume levels |
|
Special 12" woofer with paper diaphragm |
Unrestricted bass reproduction for low-fatigue operation |
|
Easy manual or automatic (de-)activation |
If desired, monitoring is possible without the low frequencies |
|
Additional sub output |
Allows building a (double) bass array |
| According to downward working bass reflex tube with generous dimensions and corresponding rounding | Prevention of air turbulence noise |
|
Crossover frequency is selectable between 50 to 150 Hz |
Allows optimal adaptation of the total system on the bass performance of the satellites |
|
Connectable high-pass filter for the satellite outputs, which blocks signals below 85 Hz |
|
|
2 years warranty with optional extension to 3 years with the registration of the product |
Full repair service if required for 5 years |
TECHNICAL DATA
SUBWOOFER
|
Number |
1 |
|
Basket Ø |
12" (310 mm) |
|
Voice Coil Ø |
2" (50 mm) |
|
Cone Material |
Paper |
BUILT-IN AMPLIFIERS
|
Subwoofer |
1 |
|
Type |
PWM |
|
Amp. Power RMS / Music |
200 W / 300 W |
INPUT CONNECTORS
|
Analog |
XLR / RCA |
GENERAL DATA
|
Frequency Response |
22 Hz - 150 Hz |
|
THD > 60 Hz |
≤1 % |
|
Max. peak SPL at 1 m |
≥115 dB |
|
Crossover Frequencies |
50 - 150 Hz |
|
Input Impedance |
10 kOhm |
|

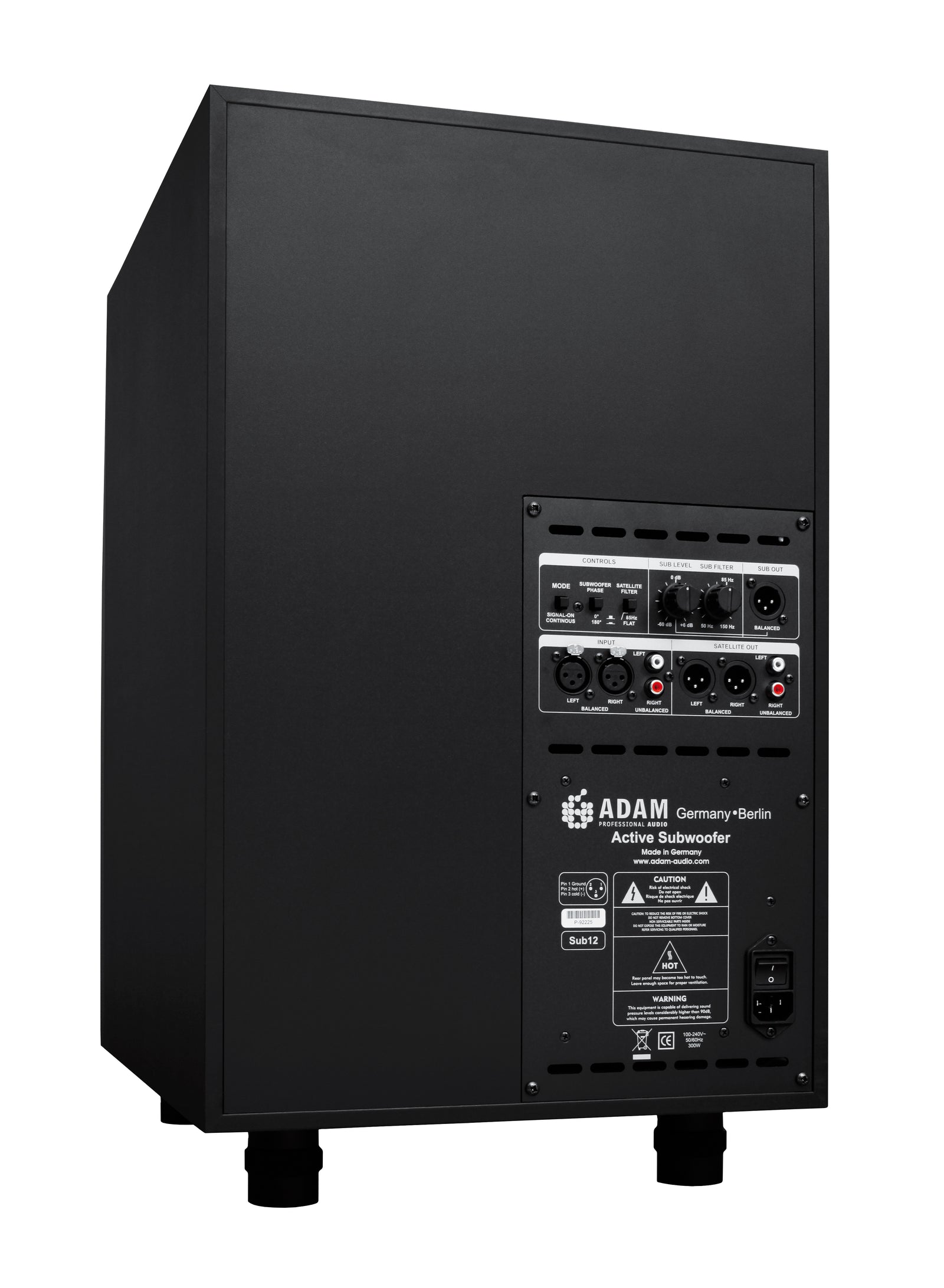

Panel |
Rear |
|
Weight |
57.3 lb (26 kg) |
|
Height x Width x Depth |
23.5" (600 mm) x 14" (360 mm) x 17.5" (450 mm) |
|
Warranty |
5 years (2 years warranty plus 3 years optional with product registration) |
|
Delivery contents |
Power cord, manual |
