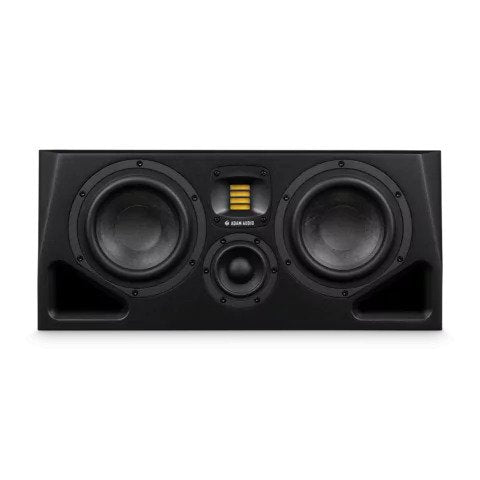

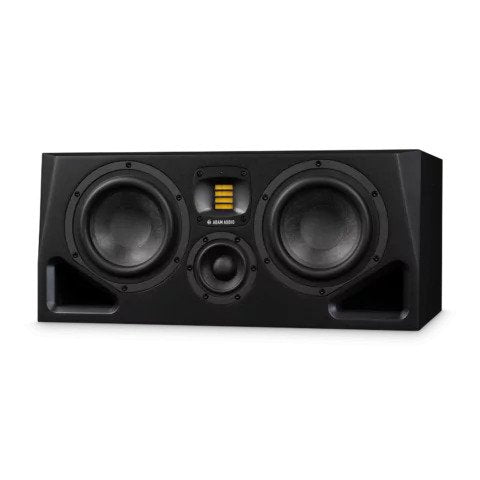

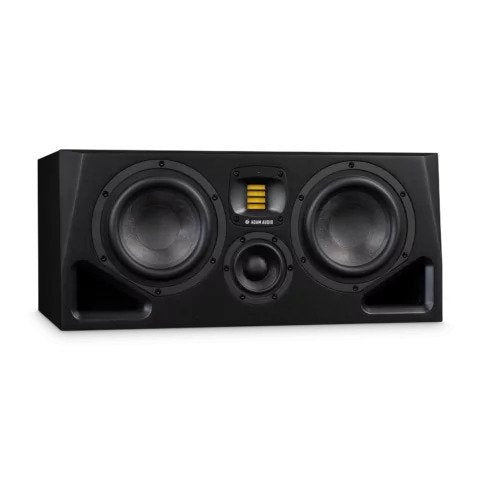

ADAM Audio A77H Active Nearfield / Midfield Monitor

ADAM AudioSKU: 12106700

Price:
Sale price €1,199.00

Incorporating two 7-inch woofers, a midrange driver, and ADAM Audio’s X-ART tweeter, the A77H delivers an ultra-wide frequency range.

The addition of the midrange driver helps produce clear sound in the most sensitive range of human hearing. Rotatable HPS waveguide technology and onboard DSP allow you to tune the sound for your precise requirements.

  • German Handmade Precision X-ART Tweeter with rotatable HPS waveguide
  • 3.5" DCH Midrange Driver
  • 2 x 7'' Woofer (Multi-Layer Mineral)
  • Cumulated Amp. Power Peak: 340 W

Features:

  • A Control Remote Software

The DSP-based functionality of all A Series monitors can be controlled remotely and in real time over ethernet using A Control. The application can be downloaded free of charge for Windows and MacOS in the MyADAM user area upon registration of an A Series monitor.

REAL-TIME REMOTE CONTROL

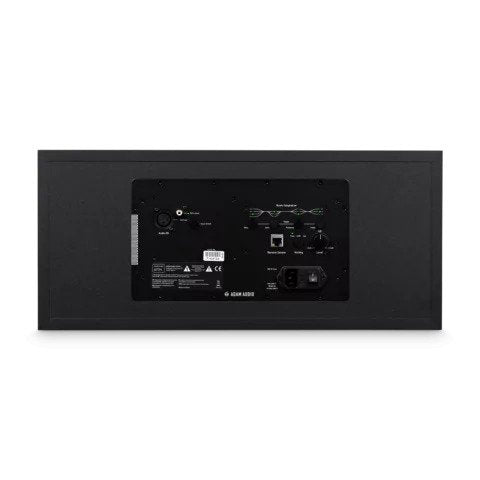

The backplate of A Series monitors offers a variety of equalization and tuning options, but quite often the backplate is not accessible from the listening sweet spot. Using A Control you can make changes to these settings from the comfort of your sweet spot and be confident in your decisions.

ADVANCED CORRECTION

For some users the backplate options might not offer enough choice and precision. Using A Control you can dial in exact tunings over six bands of parametric equalization and low and high shelf filters. Each filter band can be freely adjusted for gain, frequency and Q value to give the user complete freedom in perfecting the sound of the loudspeaker in the room.

INTEGRATED SONARWORKS SOUND ID REFERENCE

A Control facilitates our collaboration with industry leaders Sonarworks. Using the SoundID Reference option, calibration curves generated by the Sonarworks application can be imported into A Control and pushed directly to an embedded platform on A Series monitors. When this option is enabled, the calibration is happening directly on the monitor and thus no additional VSTs or software applications are required. It also means you are hearing calibrated audio regardless of your sound source.

  • Rotatable HPS Waveguide & X-Art Tweeter

WHAT IS A WAVEGUIDE?

A Waveguide is a tapered recess that frames a tweeter to disperse sound in space in a more controlled manner. The A Series HPS (high-frequency propagation system) waveguide is constructed from resin and glass fibers, which are baked together under high temperatures to form a single piece that is specifically designed for X-ART dispersion characteristics. The waveguide is not easily excited by unwanted vibrations or resonances, contributing toward internal damping.

HORIZONTALLY BROAD, VERTICALLY TIGHT

In the horizontal domain, the waveguide is designed to match the dispersion angle of the X-ART tweeter to the woofers and midrange drivers in the crossover region. This results in a smoother, less distracting response when listening to the speakers off axis, supporting stability of the imaging and creating a larger usable “sweet spot”.

In the vertical domain, the waveguide’s design reduces energy arriving on the surfaces of significant studio furniture, such as mixing consoles, desks or even the ceiling. These surfaces can potentially cause harmful reflections and ultimately comb-filtering.

  • Bass Reflex System

LOWER EXTENSION, HIGHER EFFICIENCY

A Series monitors feature a flared-port design that optimises airflow and reduces port noise. With every cubic centimetre accounted for, the industrial inspired design can provide lower extension and higher efficiency in a smaller box. The cabinets have deeper bevelling to further reduce diffraction and thicker baffle walls to reduce unwanted cabinet vibrations.

DESIGNED WITH MOUNTING IN MIND

All A Series speakers include an underside mounting interface, giving you the flexibility to mount A Series speakers wherever you need them. All models feature four M8 threaded screw holes (10mm depth) in a rectangular pattern of 127 mm x 70 mm. ADAM Audio plans to soon release a comprehensive range of wall, ceiling, and pole mounting options.

  • Automated Room Correction with Sonarworks

CAN’T TREAT YOUR SPACE? COMPENSATE FOR IT.

A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. For many people, the environments in which they create music are multipurpose, doubling as a bedroom or living room where acoustic treatment is often not an option. Using A Control, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics, and this platform supports filters from industry leaders Sonarworks. Using Sonarworks SoundID Reference software and a measurement mic, you can create calibration curves specifically for your room and run them directly on your A Series monitors.

CALIBRATE EVERY AUDIO SOURCE WITH LESS PROCESSING POWER

ADAM Audio and Sonarworks have worked side-by-side to deliver a pioneering integration that runs directly on A Series monitors. This negates the need for an additional DAW plugin, simplifying workflows and ensuring that your studio monitors are always using a calibrated filter regardless of the audio source or type. It also means that you do not need to worry about your audio source, as the calibration is taking place directly on the monitor’s embedded platform.

TECHNICAL DATA

  • General Data

    • Display: Front panel multi-colour LED
    • Cabinet Design: Dual front ported
    • Cabinet Material: Vinyl wrapped MDF and painted MDF front panel
    • Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
    • AC Input Voltage: 100 – 240 V, 50/60 Hz
    • Power Rating: 500 W max.
    • Operating Conditions: -10° C to +45° C (+14° F to +113° F); <75 % RH, non-condensing
    • Weight: 17.1 kg (37 lb 11 oz)
    • Dimensions (Height x Width x Depth): 236 mm x 531 mm x 350 mm (9 1/4″ x 20 7/8″ x 13 3/4″)
    • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
    • Delivery Contents: A77H loudspeaker, power cable, Quick Start Guide
  • Audio Input Connectors

    • Analog: XLR, RCA
    • Input Impedance: 9 kOhm / 3.3 kOhm
    • Max. Input Level: +19 dBu
  • Amplification

    • Woofer
      • Amplifier Type: PWM
      • Peak (10% THD, limiter deactivated): 250 W
      • RMS (1% THD, limiter deactivated): 200 W
    • Midrange
      • Amplifier Type: Class A/B
      • Peak (10% THD, limiter deactivated): 70 W
      • RMS (1% THD, limiter deactivated): 55 W
    •  Tweeter
      • Amplifier Type: Class A/B
      • Peak (10% THD, limiter deactivated): 20 W
      • RMS (1% THD, limiter deactivated): 15 W
  • Control Options [via Network]

    • Networking Connector: RJ45
    • Connection Type: Ethernet
    • Communication Protocol: OCA using standard IP data
    • Control Software: A Control (Windows and MacOS available)
    • Room Adaption Options: Backplate, Extended, Sonarworks SoundID Reference integration
    • Advanced Room Adaptation: 6 x PEQ, Level, Delay
    • Third-party Calibration Compatibility: Import from Sonarworks SoundID Reference
  • Drivers

    • Woofer
      • Basket Diameter: 2 x 7″
      • Voice Coil Diameter: 1.5″ (38 mm)
      • Cone Material: MLM
    • Midrange
      • Type: Dome Cone Hybrid (DCH)
      • Basket Diameter: 3.5″
      • Voice Coil Diameter: 1.3″ (33 mm)
      • Cone Material: MLM
    •  Tweeter
      • Type: X-ART
      • Diaphragm Area: 4 inch² (2420 mm²)
      • Equivalent Diaphragm Diameter: 2″ (56 mm)
      • Velocity Transform Ratio: 4 to 1
      • Diaphragm Weight: 0.17 g
      • Waveguide: HPS (rotatable)
      • Waveguide Dispersion: 120° horizontal, 70° vertical
  • Signal Processing

    • AD converter: 24-bit
    • Internal sample rate: 96 kHz
    • Delay range, resolution: 0 – 10 ms, 0.1 ms
    • Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
  • Control Options [via Backplate]

    • Input Sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
    • Level: -12 dB to +12 dB
    • Input Selection: Balanced, unbalanced
    • Voicings: Pure, UNR
    • Room Adaption:
      • Bass: +2, 0, -2, -4 dB
      • Desk: 0, -2, -4 dB
      • Presence: +1, 0, -1 dB
      • Treble: +1.5, 0, -1.5 dB
