Developed specifically for audio-for-picture applications, the 302 mixer is the perfect tool for production companies and camera operators wanting to take control of their audio. The 302 is stunning for its size, flexibility, control and performance; it is the most compact and cost-effective battery-powered professional audio mixer in its class.

With important features to accommodate nearly any over-the-shoulder production, the 302 interfaces with wireless transmitters and receivers, camera audio inputs of all kinds, and external audio recorders. Its microphone inputs share the same superb circuitry of all Sound Devices field production tools.

Like Sound Devices larger 442 Field Mixer, the 302 has a complete feature-set in a compact, functional design. All controls are accessible on its three main surfaces; no hidden controls. The high-efficiency power circuitry runs the mixer from either three internal AA batteries or external 5-18 VDC.

————

FEATURES

Lundahl transformer-balanced mic or line level inputs on XLR connectors

Continuously adjustable input trim

Two-position high-pass filter

Pan switches

Limiters on inputs and outputs

Stereo and MS linking of channel 1 and 2

Phantom (48 V or 12 V) or “T” microphone powering selected per channel

Solo (PFL) channel monitoring in headphones

Peak limiters per channel

Tape level output on TA3 locking connectors

Active-balanced line/tape/mic level outputs on XLR connectors

Stereo tape level output on TA3 connector

Return input for monitoring

Channel 4/5 input option

Sunlight-viewable LED meters with proprietary software selected ballistics

On-board MS stereo matrix

Push pots for setup features to keep the front panel clutter-free

Durable extruded aluminum chassis

Weight less than 1 kg with batteries

Powered by three AA batteries or external 5 – 18 VDC

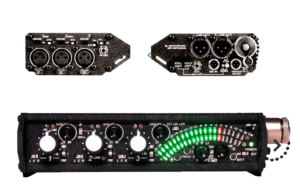

Front Panel

Coarse channel gain (trim) control

Channel fader

Two-position high-pass filter switch

Channel limiter activity LED

Channel peak activity LED

Pan switch, left, center, right

Limiter activation switch, dual-mono or stereo link

40-segment tri-color LED output meter

Headphone volume control

Power LED shows green on power; flashes when power is low

Power switch selects internal AA-batteries or external DC

Meter illumination brightness switch

Meter ballistics toggle switch

Battery check switch

Slate mic / tone oscillator switch

Input Panel

Transformer-balanced mic/line XLR input

Mic / line input sensitivity switch

Phantom, dynamic, or T powering switch

48 V or 12 V global phantom voltage

3.5 mm TRS headphone output connector



Output Panel

Active-balanced line level ouput (user adjustable to mic or attenuated levels)

Tape Out / Mix Out connection on TA3 connector – duplicate of program audio

Monitor return input on 3.5 mm TRS unbalanced input (also functions as input 4/5 connector)

Monitor return input level (also functions as input 4/5 level control)

Mix In connection input to link a MixPre, 442, or another 302

Input 4/5 enable LED indicates that Monitor return functions as inputs 4/5

Ouput Attenuation LED indicates that XLR output level attenuated from Line level

Battery tube – holds 3 AA batteries

External DC input for 5 – 17 VDC



Excellent condition – very little use, like new.

SD 302 Price – New: €2,125.00 EACH

SD 302 Sale Price : €1,110 ono  EACH

Deal available if purchasing two (x2) 302 units



For Further information:

https://www.sounddevices.com/products/mixers/302

---
